Model 2

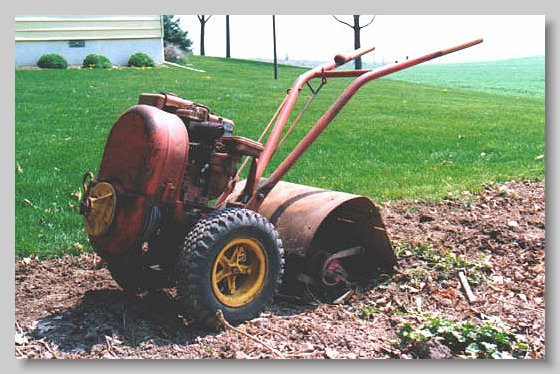

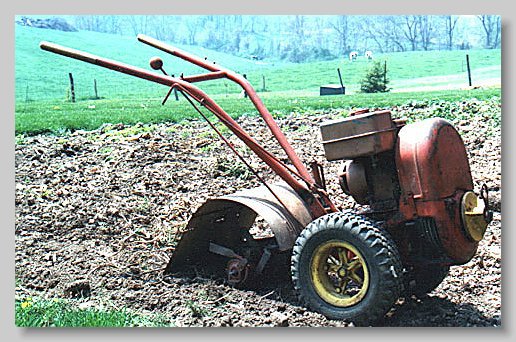

This was my second Rototiller brand tiller. This was assembled from 2 machines that I was given in "basket case" form
This was my second Rototiller brand tiller. This was assembled from 2 machines that I was given in "basket case" form
Rotoette10a Model 3 & 2

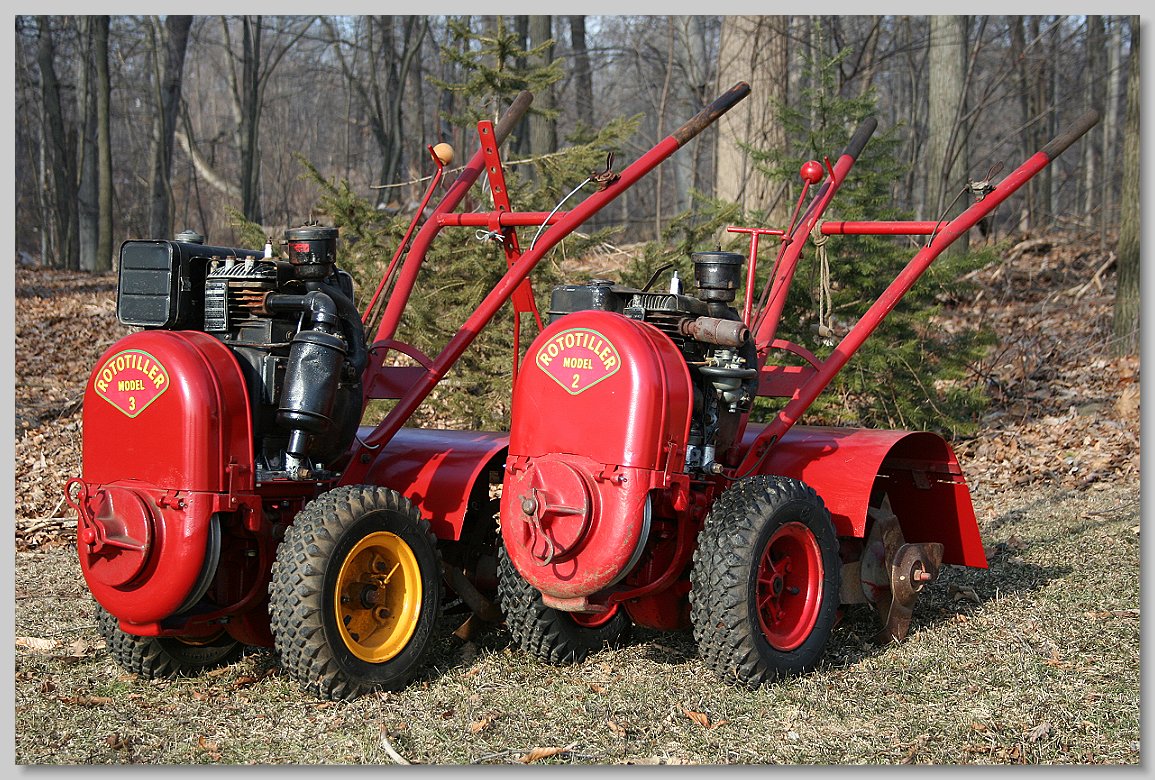

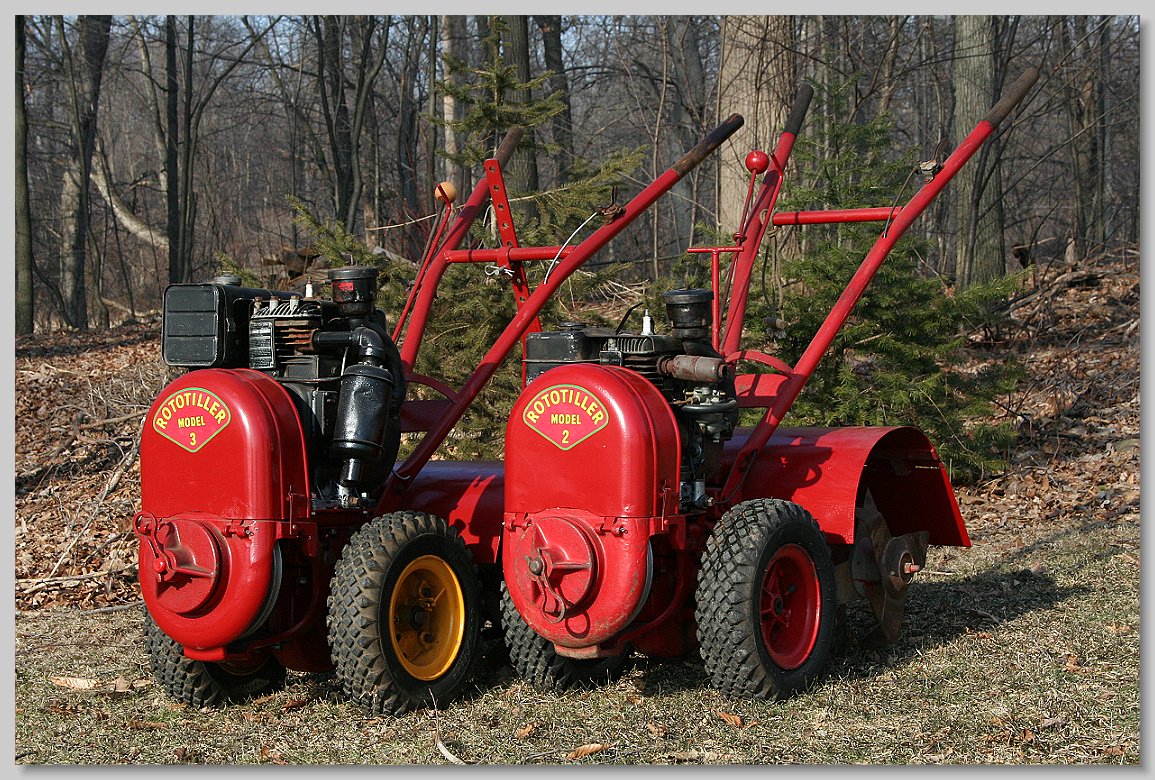

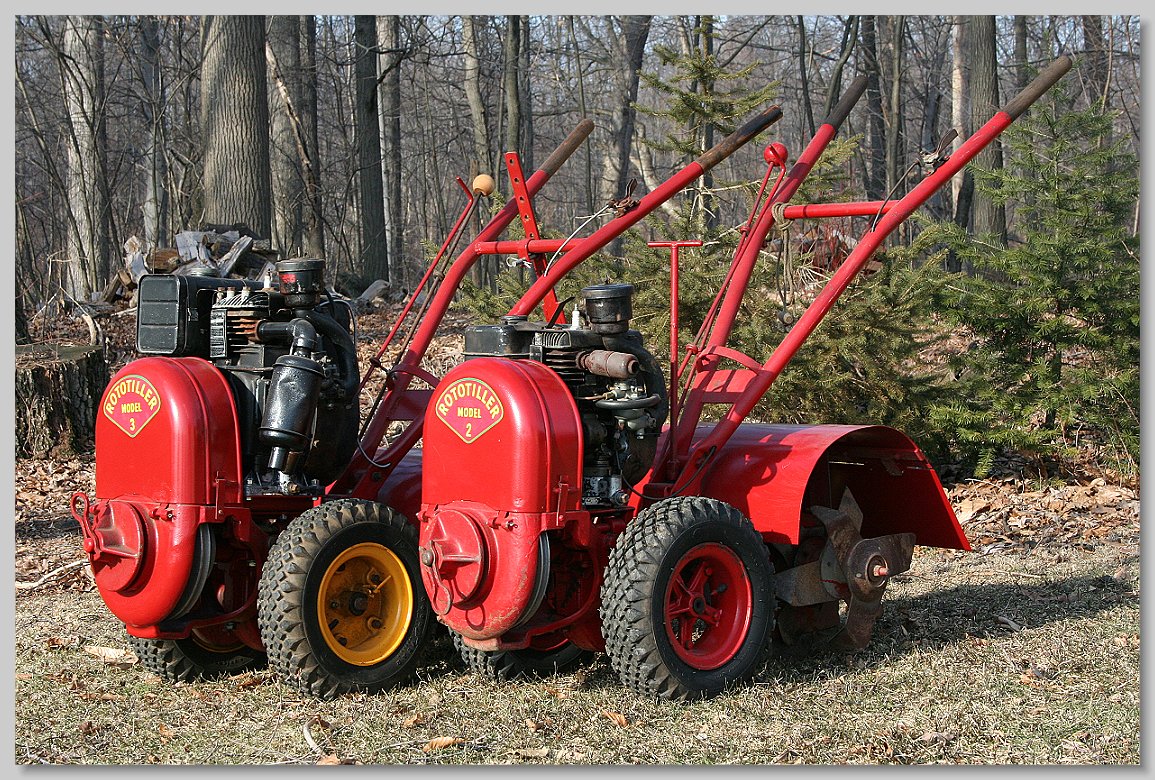

Model 2 (on the right) with a 2hp B&S engine. Model 3 has a 3hp B&S engine and free wheeling hubs.
Model 2 (on the right) with a 2hp B&S engine. Model 3 has a 3hp B&S engine and free wheeling hubs.

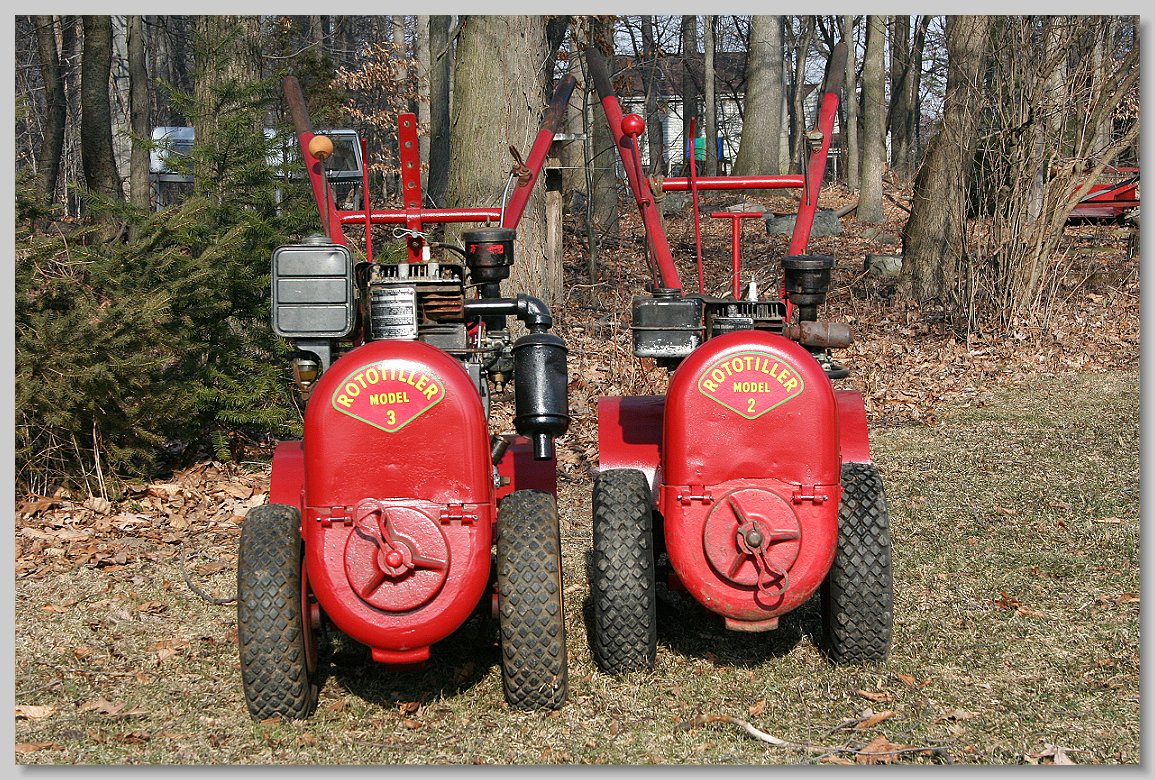

Model 3 & 2 Model 3 & 2
Model 3 & 2

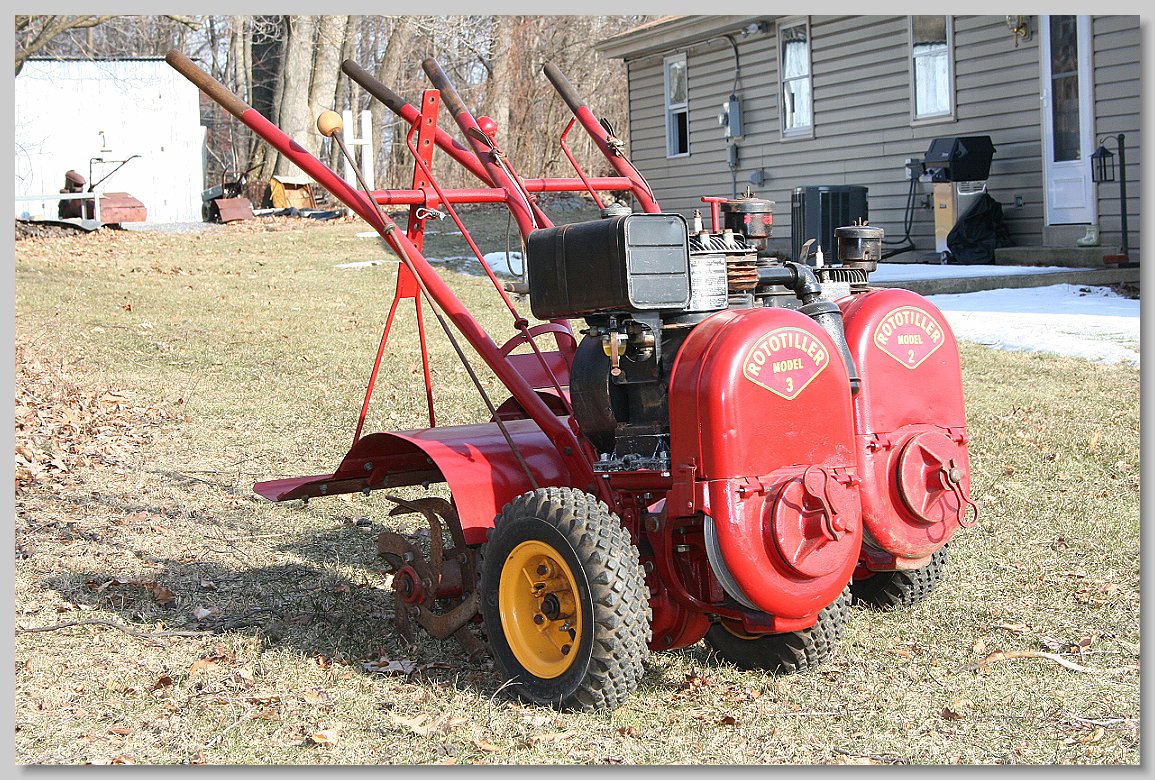

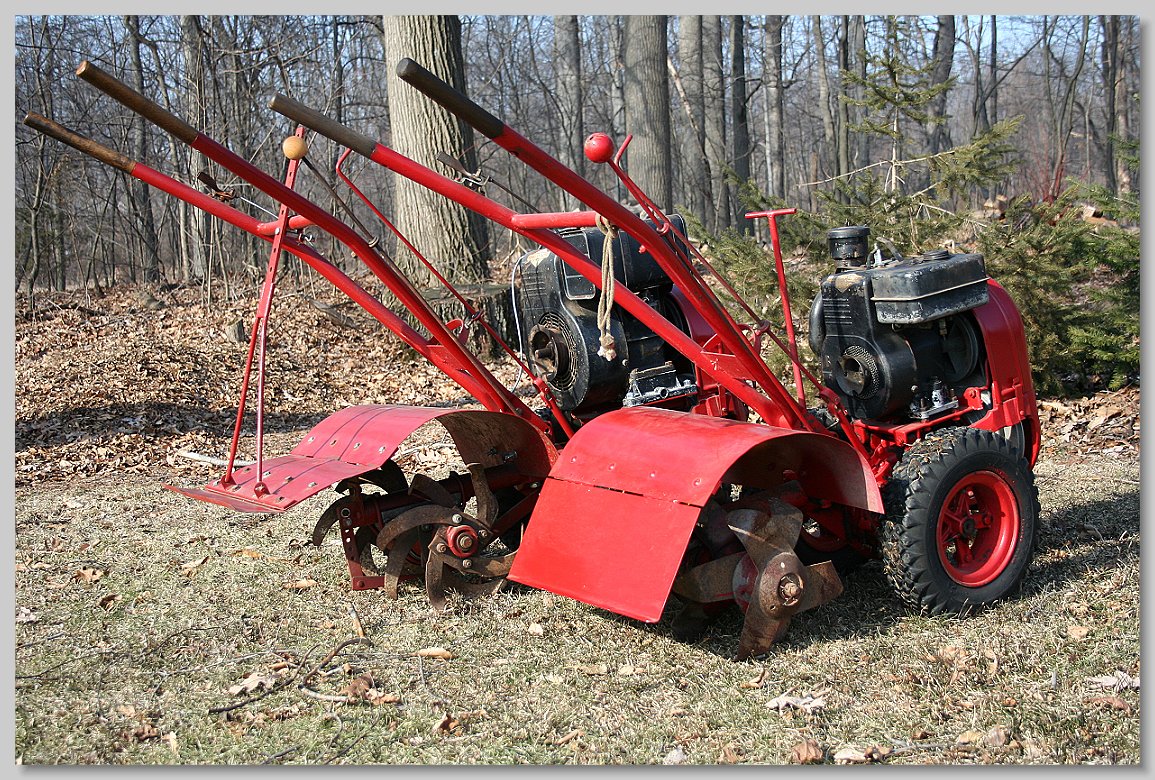

Adjustable rear flap is factory original option.
Adjustable rear flap is factory original option.
Model 3 & 2 Model 3 & 2 Model 2 serial number location.

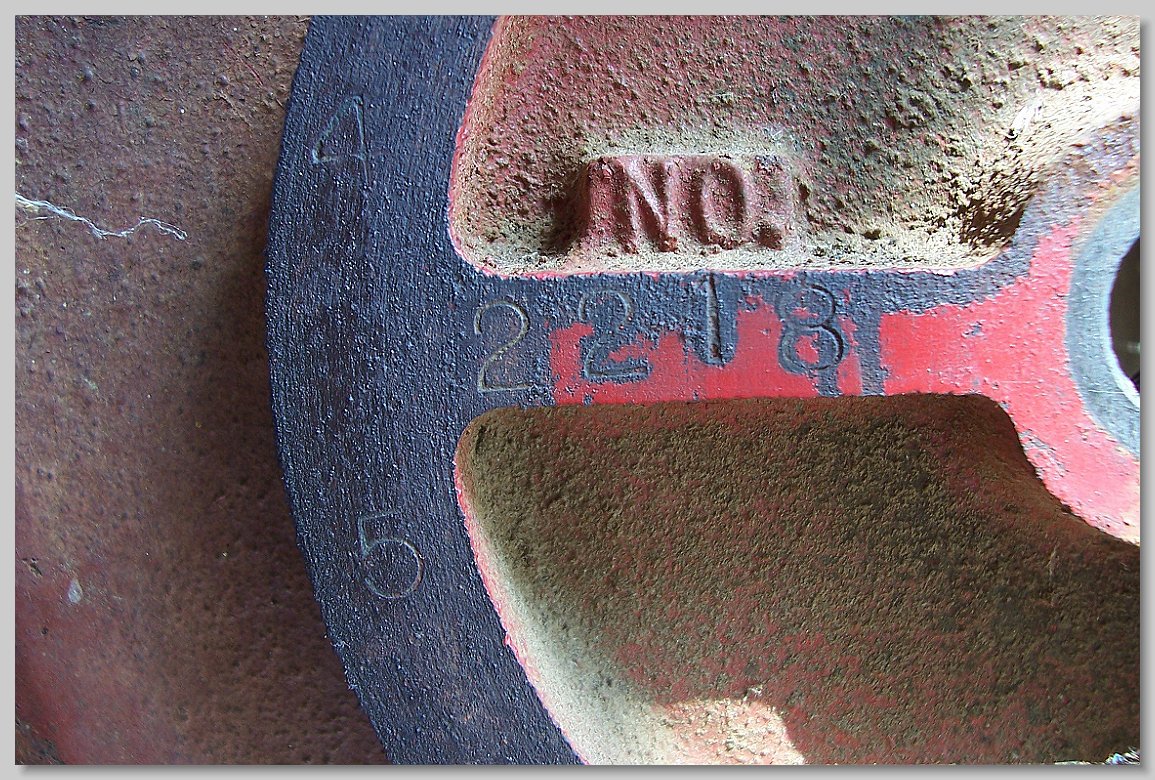

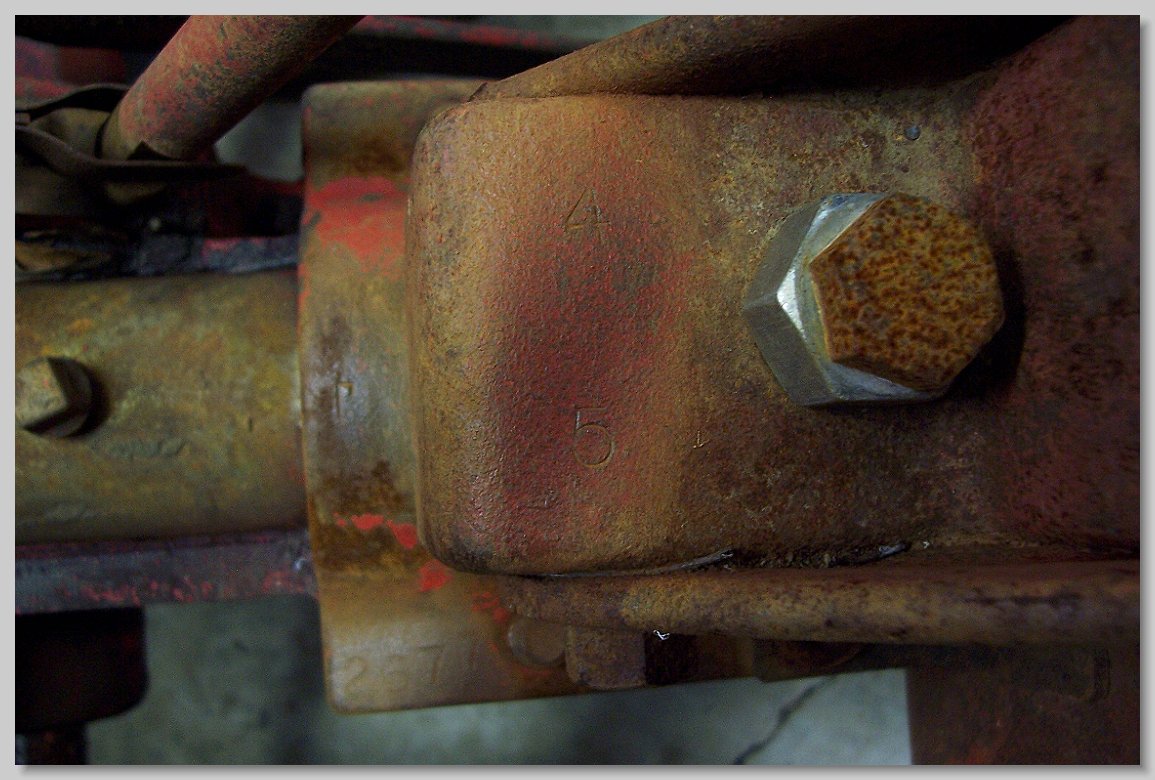

45 2218 Roto-Ette Model 2 serial number. I believe this one was built in April of 1955. Top number being the month, the bottom the last digit of the year, and the 4 digit number indicating this unit's particular number in the production series. This number is stamped on the "Lightning Change Front", behind the disc that is mounted on the pin where all the attachments go.
45 2218 Roto-Ette Model 2 serial number. I believe this one was built in April of 1955. Top number being the month, the bottom the last digit of the year, and the 4 digit number indicating this unit's particular number in the production series. This number is stamped on the "Lightning Change Front", behind the disc that is mounted on the pin where all the attachments go.

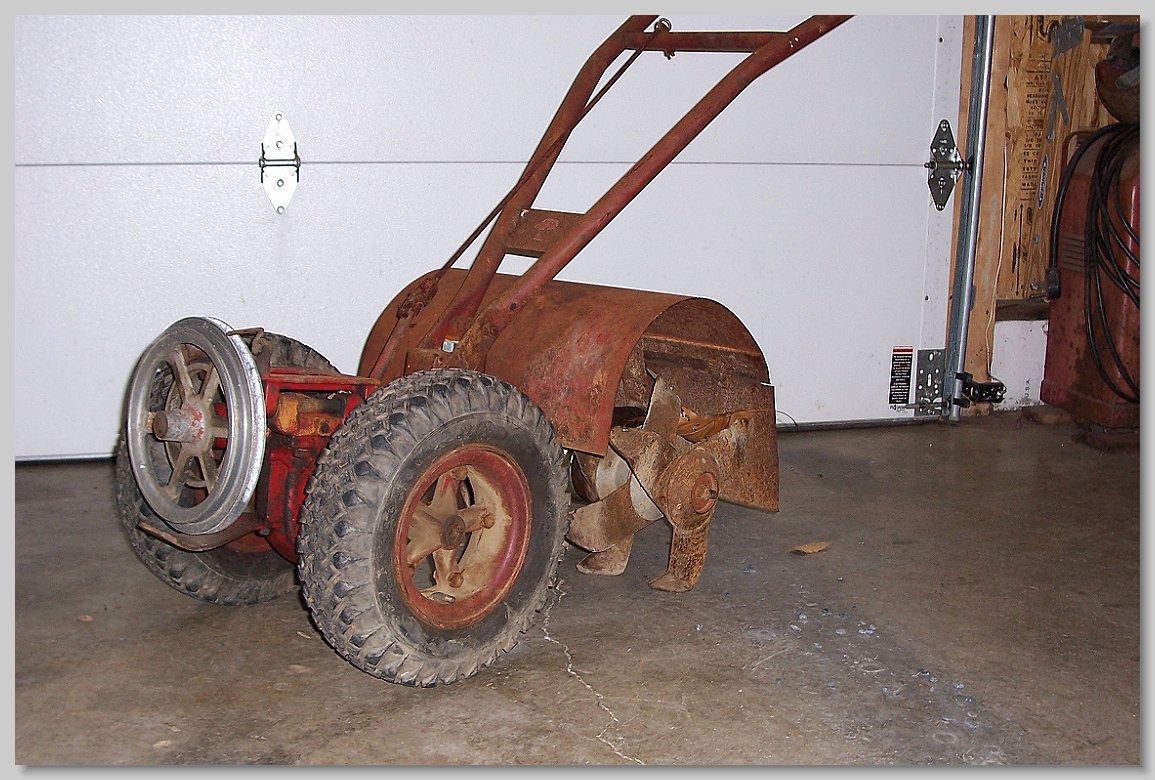

Later 2 speed Model T
45 2677 This is a Later 2 speed Model T, which I believe was built in April 1955 according to the info in the other Later Model T photo in this album. See next photo for location of the serial number.
45 2677 This is a Later 2 speed Model T, which I believe was built in April 1955 according to the info in the other Later Model T photo in this album. See next photo for location of the serial number.
Later Model T serial number location.
45 2677 Later Model T pictured in this album. Serial number is stamped on the handlebar assembly mounting bracket.
45 2677 Later Model T pictured in this album. Serial number is stamped on the handlebar assembly mounting bracket.
Early Model T Serial Number Location.

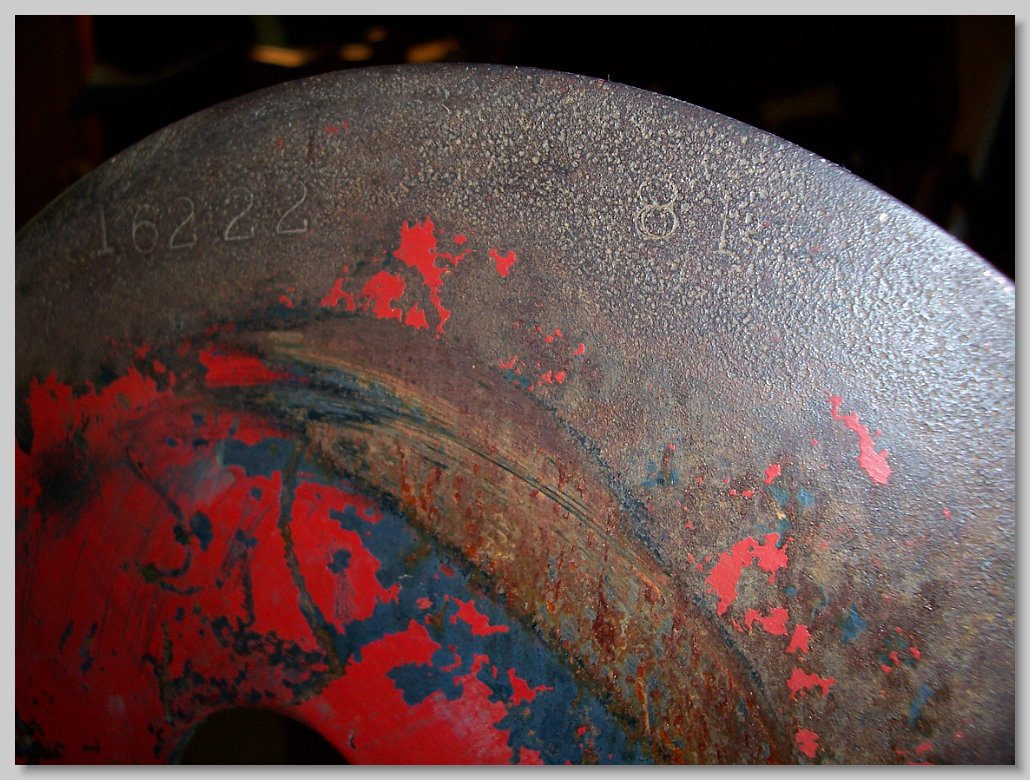

16222 81 This serial number for the early Model T is located above the motor belt sheave. It appears they put the month and year data after the unit serial number. I believe this Model T was built in August of 1951 and is number 16222 in the early Model T series.
16222 81 This serial number for the early Model T is located above the motor belt sheave. It appears they put the month and year data after the unit serial number. I believe this Model T was built in August of 1951 and is number 16222 in the early Model T series.
Model 3 With Tine Clutch

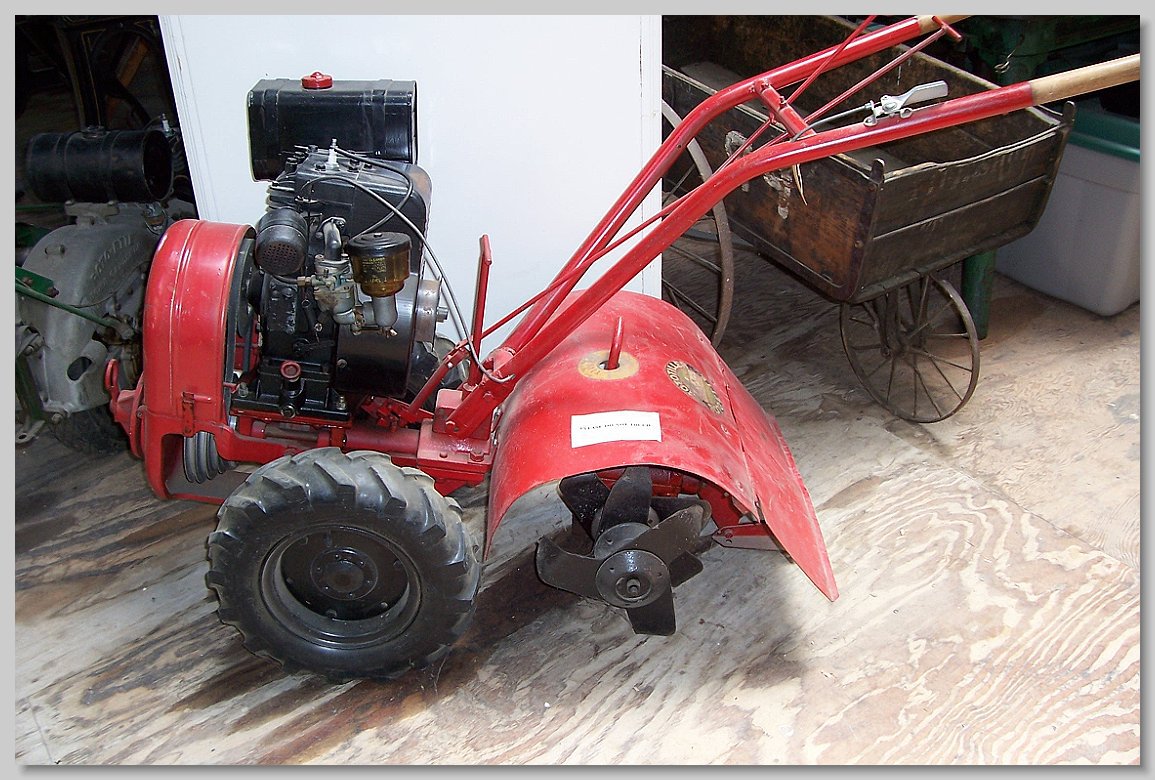

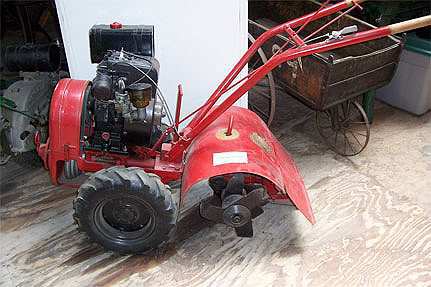

A Model 3 with the tine clutch feature. Note the handle protruding thorugh the tiller hood. Turning this would engage or disengage the tiller. This tiller is located in the Burden Iron Works Museum in Troy, NY.
A Model 3 with the tine clutch feature. Note the handle protruding thorugh the tiller hood. Turning this would engage or disengage the tiller. This tiller is located in the Burden Iron Works Museum in Troy, NY.
25" Reel Mower

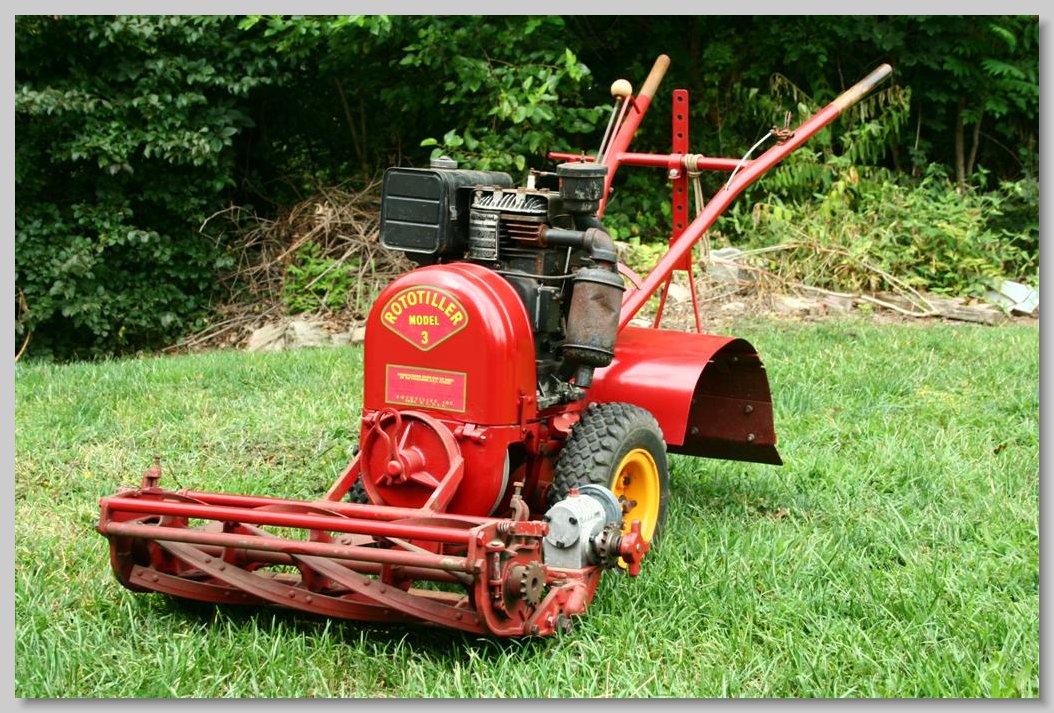

25" Locke reel mower attachment mounted on my Model 3.
25" Locke reel mower attachment mounted on my Model 3.
Dozer Blade

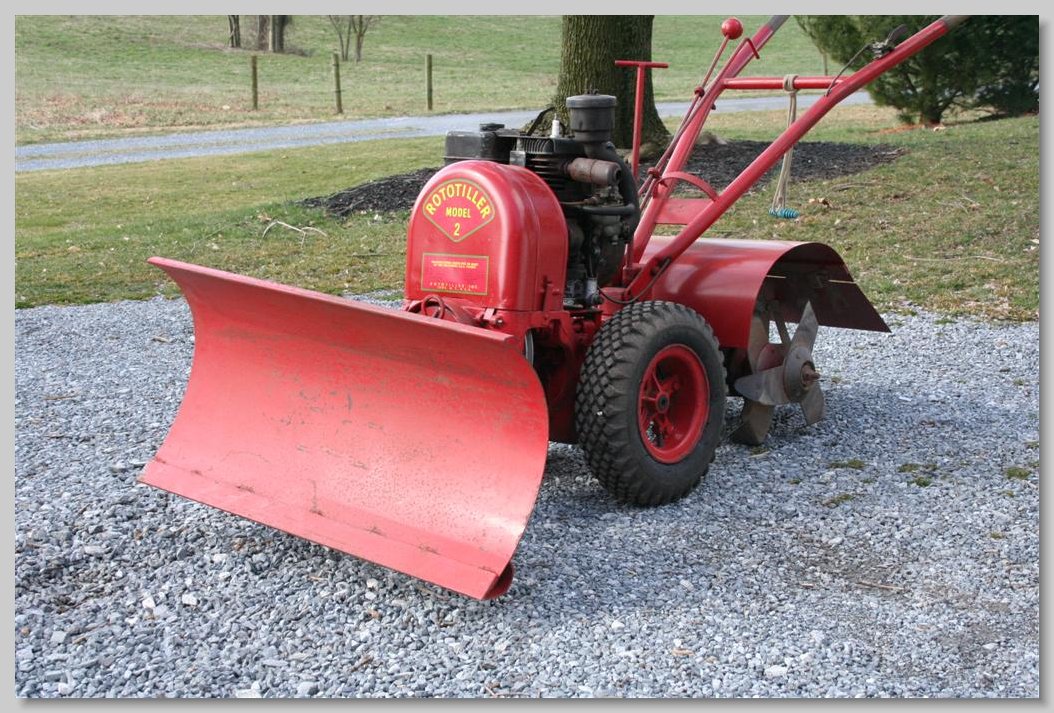

Dozer blade mounted on a Model 2. I also have the mount for using this on a Model T.
Dozer blade mounted on a Model 2. I also have the mount for using this on a Model T.
IMG 6771 (Medium)

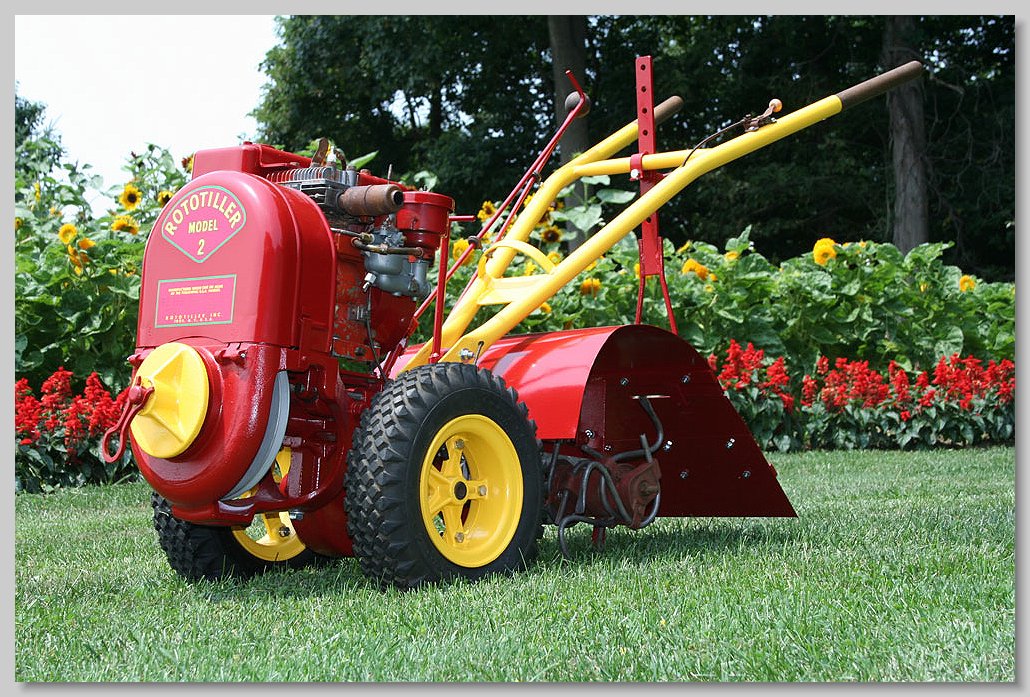

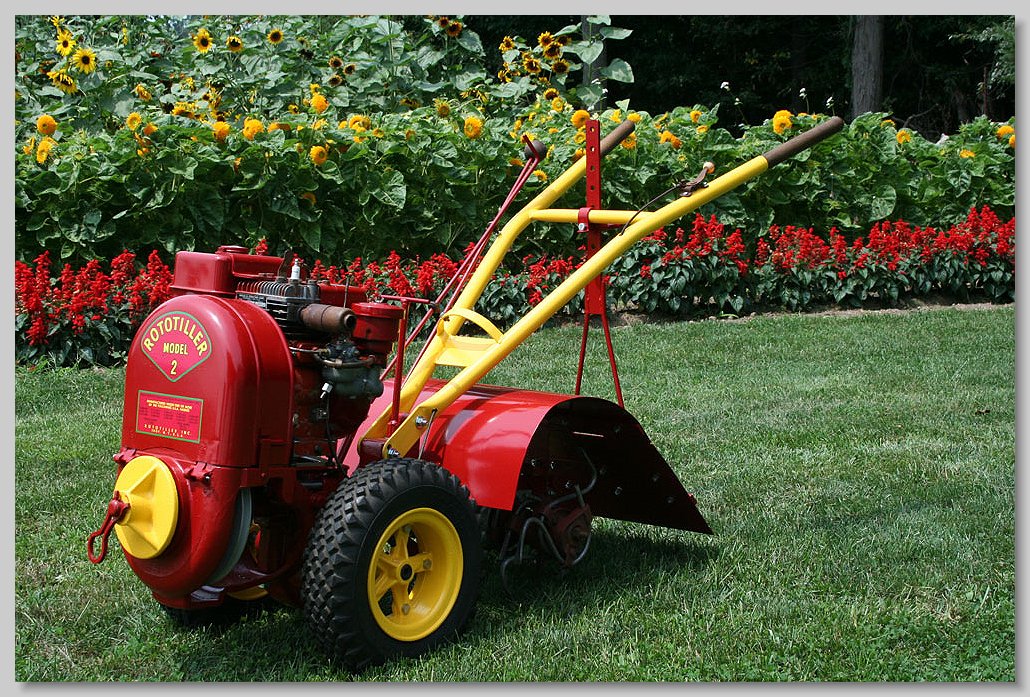

My newly restored 1957 Model 2 with a B&S Model 8B all aluminum engine.
My newly restored 1957 Model 2 with a B&S Model 8B all aluminum engine.
IMG 6773 (Medium)

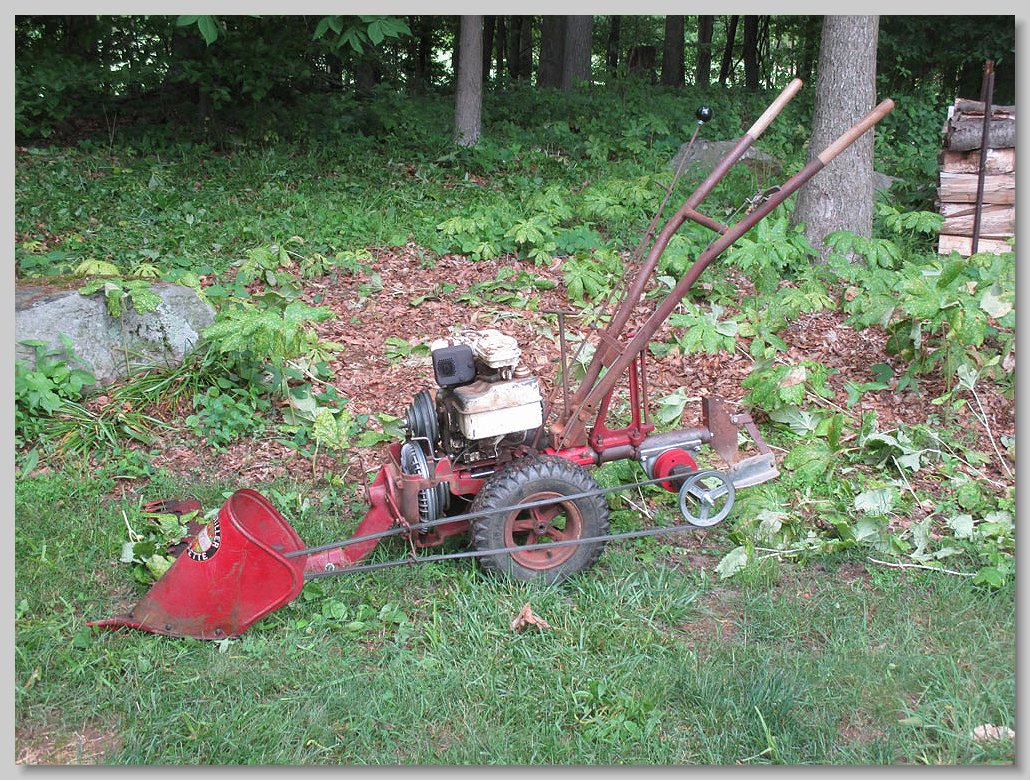

This is a Rototiller Mow-Tiller with attached chute for cutting corn stalks and other garden residue. The mower detaches quickly and a rototiller attaches in its place. Two pieces of lawn and garden equipment for one engine.
This is a Rototiller Mow-Tiller with attached chute for cutting corn stalks and other garden residue. The mower detaches quickly and a rototiller attaches in its place. Two pieces of lawn and garden equipment for one engine.
IMG 6947 (Medium)

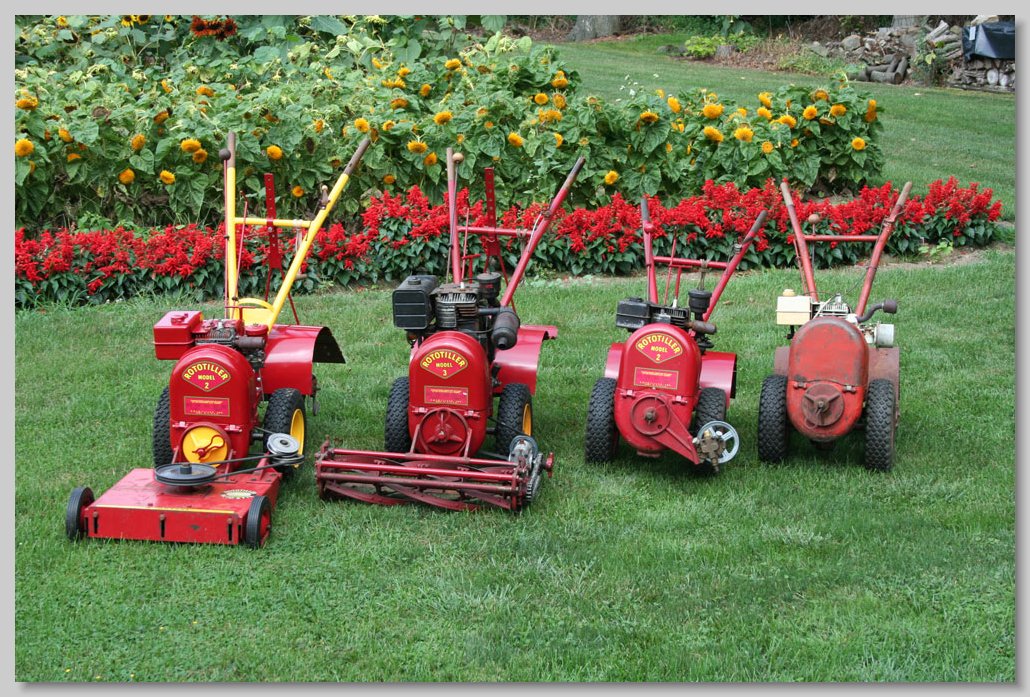

My collection of restored Model 2 and 3 tillers made by Rototiller, Inc., Troy, NY. From L - R: 1957 Model 2 with a rotary mower, a 1957 Model 3 with a 25" reel mower made by the Locke company, and a 1956 Model 2 with an Oberdorfer 10.5 gpm gear pump.
My collection of restored Model 2 and 3 tillers made by Rototiller, Inc., Troy, NY. From L - R: 1957 Model 2 with a rotary mower, a 1957 Model 3 with a 25" reel mower made by the Locke company, and a 1956 Model 2 with an Oberdorfer 10.5 gpm gear pump.
IMG 6949 (Medium)
Another view of the restored Model 2 & 3 tillers.
Another view of the restored Model 2 & 3 tillers.
IMG 6929 (Medium)
The tiller on the right is the very first Model 2 that I acquired. I beleive it was made in 1953. In the photo is has a 5 hp Tecumseh engine mounted. I just finished the correct B&S Model 8 engine for it. This is my worker tillers. It is really great for working up flower beds.
The tiller on the right is the very first Model 2 that I acquired. I beleive it was made in 1953. In the photo is has a 5 hp Tecumseh engine mounted. I just finished the correct B&S Model 8 engine for it. This is my worker tillers. It is really great for working up flower beds.
IMG 6935 (Medium)
A view showing the working end of the collection. Note the adjustable rear flaps on the far two tillers. As far as I know, 1957 was the only year that was used.
A view showing the working end of the collection. Note the adjustable rear flaps on the far two tillers. As far as I know, 1957 was the only year that was used.
